Thrust Needle Roller Bearings
Explore AXK needle roller thrust assemblies and their dimensional specifications.

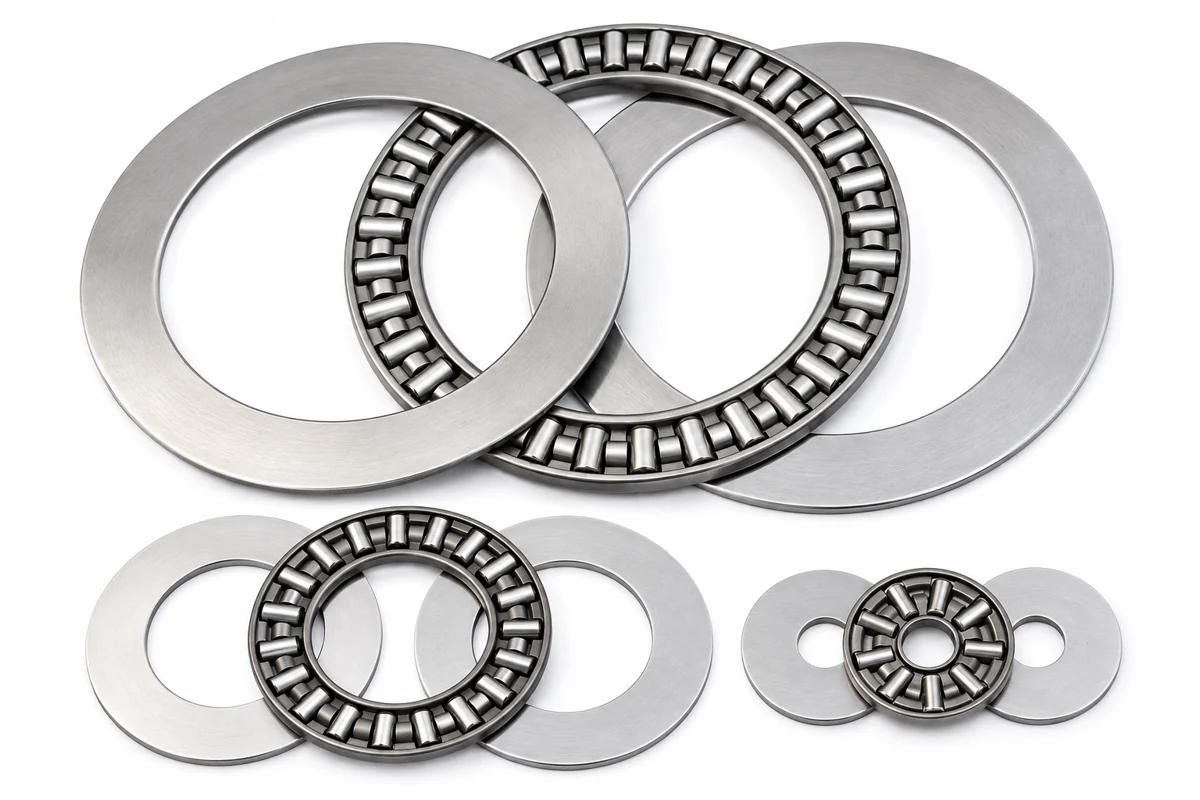

Thrust Needle Roller and Cage Assemblies
AXK Series
Thin assemblies of needle rollers and a cage for axial loads.
| Model | Dc1 (mm) | Dc (mm) | Dw (mm) | Weight (g) | AS S (mm) | WS B (mm) | AXK11 reference | Old designation |
|---|---|---|---|---|---|---|---|---|
| AXK1024 | 10 | 24 | 2 | 2.8 | 1 | 2.75 | AXK1100 | 889100 |
| AXK1226 | 12 | 26 | 2 | 3 | 1 | 2.75 | AXK1101 | 889101 |
| AXK1528 | 15 | 28 | 2 | 3.5 | 1 | 2.75 | AXK1102 | 889102 |
| AXK1730 | 17 | 30 | 2 | 4 | 1 | 2.75 | AXK1103 | 889103 |
| AXK2035 | 20 | 35 | 2 | 5 | 1 | 2.75 | AXK1104 | 889104 |
| AXK2542 | 25 | 42 | 2 | 7 | 1 | 3 | AXK1105 | 889105 |
| AXK3047 | 30 | 47 | 2 | 8 | 1 | 3 | AXK1106 | 889106 |
| AXK3552 | 35 | 52 | 2 | 10 | 1 | 3.5 | AXK1107 | 889107 |
| AXK4060 | 40 | 60 | 3 | 18.5 | 1 | 3.5 | AXK1108 | 889108 |
| AXK4565 | 45 | 65 | 3 | 20.5 | 1 | 4 | AXK1109 | 889109 |
| AXK5070 | 50 | 70 | 3 | 23.5 | 1 | 4 | AXK1110 | 889110 |
| AXK5578 | 55 | 78 | 3 | 30.8 | 1 | 4.5 | AXK1111 | 889111 / 589111 |
| AXK6085 | 60 | 85 | 3 | 39 | 1 | 4.5 | AXK1112 | 889112 |
| AXK6590 | 65 | 90 | 3 | 40 | 1 | 5 | AXK1113 | 889113 |
| AXK7095 | 70 | 95 | 4 | 60 | 1 | 5 | AXK1114 | 889114 |
| AXK75100 | 75 | 100 | 4 | 61 | 1 | 5.75 | AXK1115 | 889115 |
| AXK80105 | 80 | 105 | 4 | 63 | 1 | 5.75 | AXK1116 | 889116 |
| AXK85110 | 85 | 110 | 4 | 66.8 | 1 | 6 | AXK1117 | 889117 |
| AXK90120 | 90 | 120 | 4 | 86 | 1 | 6.5 | AXK1118 | 889118 |
| AXK100135 | 100 | 135 | 4 | 112 | 1 | 7 | AXK1120 | 889120 |
| AXK110145 | 110 | 145 | 4 | 122 | 1 | 7.5 | AXK1122 | 889122 |
| AXK120155 | 120 | 155 | 4 | 131 | 1 | 8 | AXK1124 | 889124 |
| AXK130170 | 130 | 170 | 5 | 205 | 1 | 9 | AXK1126 | 889126 |
| AXK140180 | 140 | 180 | 5 | 219 | 1 | 9 | AXK1128 | 889128 |
| AXK150190 | 150 | 190 | 5 | 232 | 1 | 9.5 | AXK1130 | 889130 |
| AXK160200 | 160 | 200 | 5 | 246 | 1 | 9.5 | AXK1132 | 889132 |
