AOSN / 292 / 293 / 294 SERIES
Spherical Roller Thrust Bearings

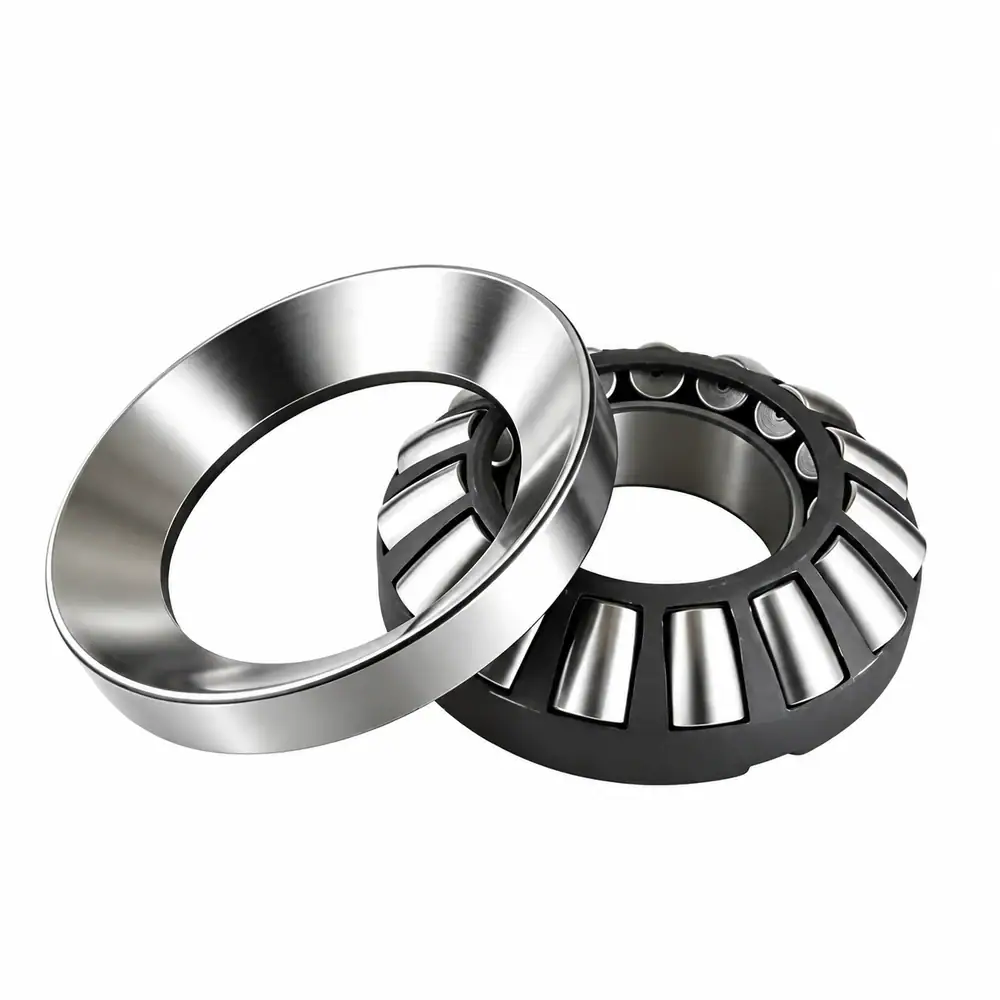

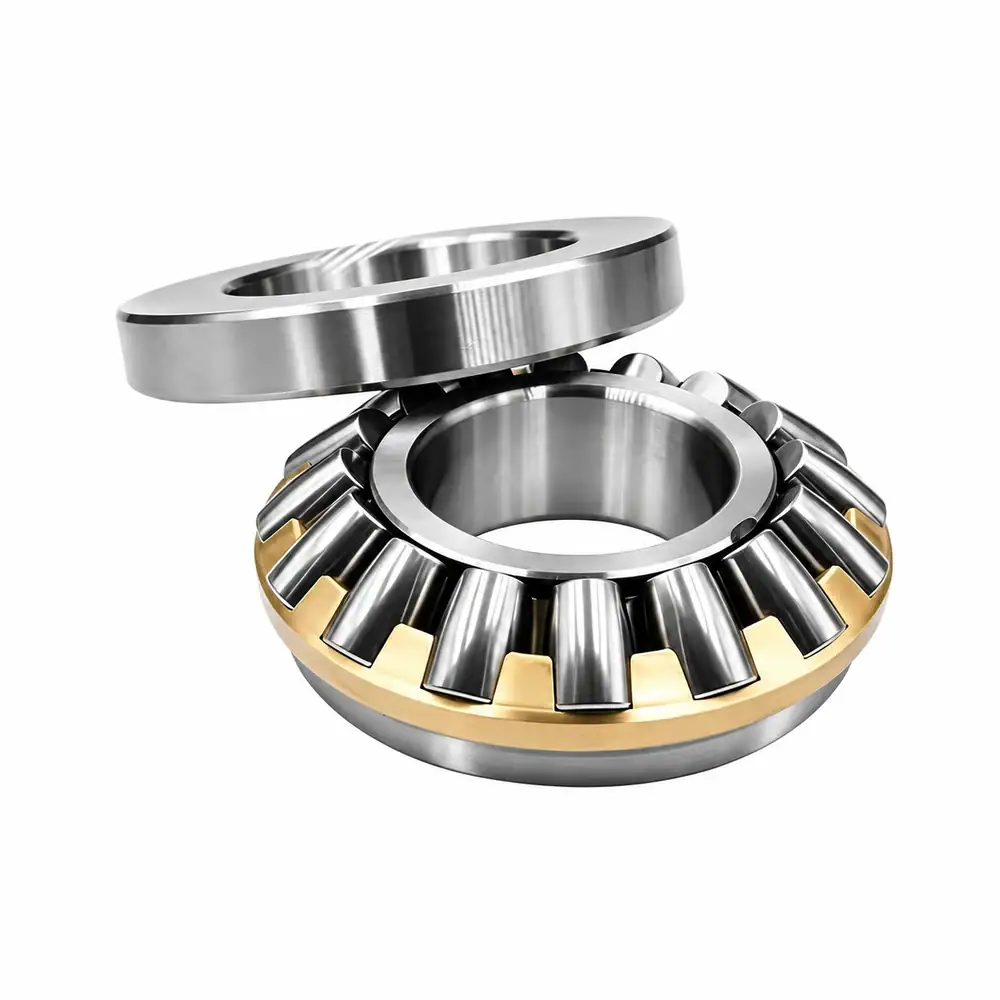

Spherical roller thrust bearings accommodate heavy axial loads and combined loads. Compare the available catalogue dimensions and confirm the cage configuration for your application.
Compare 292, 293 and 294 series dimensions. Select a model below to view its technical information and drawings.
Product List
76 models
| Model | d (mm) | D (mm) | T / T3 (mm) | r min. (mm) |
|---|---|---|---|---|
| 29230 | 150 | 215 | 39 | — |
| 29232 | 160 | 225 | 39 | — |
| 29234 | 170 | 240 | 42 | — |
| 29236 | 180 | 250 | 42 | — |
| 29238 | 190 | 270 | 48 | — |
| 29240 | 200 | 280 | 48 | — |
| 29244 | 220 | 300 | 48 | 2 |
| 29248 | 240 | 340 | 60 | 2.1 |
| 29256 | 280 | 380 | 60 | — |
| 29260 | 300 | 420 | 73 | — |
| 29264 | 320 | 440 | 73 | 3 |
| 29268 | 340 | 460 | 73 | 3 |
| 29272 | 360 | 500 | 85 | 4 |
| 29276 | 380 | 520 | 85 | 4 |
| 29280 | 400 | 540 | 85 | 4 |
| 29284 | 420 | 580 | 95 | 5 |
| 29288 | 440 | 600 | 95 | 5 |
| 29292 | 460 | 620 | 95 | 5 |
| 29296 | 480 | 650 | 103 | 5 |
| 29317 | 85 | 150 | 39 | 1.5 |
| 29318 | 90 | 155 | 39 | 1.5 |
| 29320 | 100 | 170 | 42 | 1.5 |
| 29322 | 110 | 190 | 48 | 2 |
| 29324 | 120 | 210 | 54 | 2.1 |
| 29326 | 130 | 225 | 58 | 2.1 |
| 29328 | 140 | 240 | 60 | 2.1 |
| 29330 | 150 | 250 | 60 | 2.1 |
| 29332 | 160 | 270 | 67 | 3 |
| 29334 | 170 | 280 | 67 | 3 |
| 29336 | 180 | 300 | 73 | 3 |
| 29338 | 190 | 320 | 78 | 4 |
| 29340 | 200 | 340 | 85 | — |
| 29344 | 220 | 360 | 85 | 4 |
| 29348 | 240 | 380 | 85 | 4 |
| 29352 | 260 | 420 | 95 | — |
| 29356 | 280 | 440 | 95 | — |
| 29360 | 300 | 480 | 109 | — |
| 29364 | 320 | 500 | 109 | 6 |
| 29368 | 340 | 540 | 122 | 5 |
| 29376 | 380 | 600 | 132 | 6 |
| 29380 | 400 | 620 | 132 | 6 |
| 29384 | 420 | 650 | 140 | 6 |
| 29388 | 440 | 680 | 145 | 6 |
| 29392 | 460 | 710 | 150 | 6 |
| 29396 | 480 | 730 | 150 | 6 |
| 29412 | 60 | 130 | 42 | 1.5 |
| 29413 | 65 | 140 | 45 | 2 |
| 29414 | 70 | 150 | 48 | 2 |
| 29415 | 75 | 160 | 51 | 2 |
| 29416 | 80 | 170 | 54 | 2.1 |
| 29417 | 85 | 180 | 58 | 2.1 |
| 29418 | 90 | 190 | 60 | 2.1 |
| 29422 | 110 | 230 | 73 | 3 |
| 29424 | 120 | 250 | 78 | 4 |
| 29426 | 130 | 270 | 85 | 4 |
| 29428 | 140 | 280 | 85 | 4 |
| 29430 | 150 | 300 | 90 | 4 |
| 29432 | 160 | 320 | 95 | 5 |
| 29434 | 170 | 340 | 103 | 5 |
| 29436 | 180 | 360 | 109 | 5 |
| 29438 | 190 | 380 | 115 | — |
| 29440 | 200 | 400 | 122 | — |
| 29444 | 220 | 420 | 122 | 6 |
| 29448 | 240 | 440 | 122 | 6 |
| 29452 | 260 | 480 | 132 | — |
| 29456 | 280 | 520 | 145 | — |
| 29460 | 300 | 540 | 145 | — |
| 29464 | 320 | 580 | 155 | 7.5 |
| 29468 | 340 | 620 | 170 | 7.5 |
| 29472 | 360 | 640 | 170 | 7.5 |
| 29476 | 380 | 670 | 175 | 7.5 |
| 29480 | 400 | 710 | 185 | 7.5 |
| 29484 | 420 | 730 | 185 | 7.5 |
| 29488 | 440 | 780 | 206 | 9.5 |
| 29492 | 460 | 800 | 206 | 9.5 |
| 29496 | 480 | 850 | 224 | 9.5 |
No matching model. Try another designation.
Dimensions in mm. Select a model for load ratings, speeds and drawings. — = not specified.
